Manufacturing Processes of Carbon Fiber Composites

Carbon fiber composites, known for their exceptional properties, have been widely used in aerospace, automotive, sports equipment, and other high-end industries. However, these outstanding characteristics not only depend on the inherent properties of carbon fiber but are also closely linked to the manufacturing processes. Different manufacturing techniques influence the mechanical performance, surface quality, production efficiency, and cost of the final product.

This article provides a detailed overview of several common manufacturing processes for carbon fiber composites, with real-world examples to illustrate their advantages and limitations. This will help readers better understand how to select the most suitable method for specific applications.



1. Overview of Carbon Fiber Composite Manufacturing Processes

Carbon fiber composite manufacturing can be categorized into various processes depending on the requirements. Commonly used techniques include wet pultrusion, prepreg molding, vacuum bagging, resin transfer molding (RTM), and hand lay-up. Each process is suited for different shapes and sizes of composite components.







2. Wet Pultrusion Process

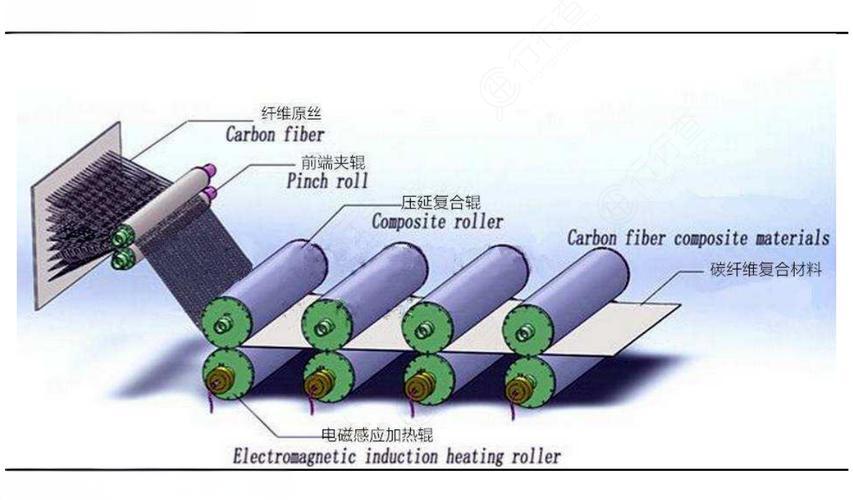

Wet pultrusion is a significant manufacturing process for carbon fiber composites, mainly used for producing continuous profiles and sheets. In this process, carbon fibers are impregnated with resin and then pulled through a die to form the desired shape.

Process Steps:

1. Carbon fiber strands are immersed in a resin bath to ensure even impregnation.
2. The impregnated fibers are pulled through a heated die, where the resin cures and solidifies into the desired shape.
3. The material is cooled and cut into the required dimensions.

Applications:

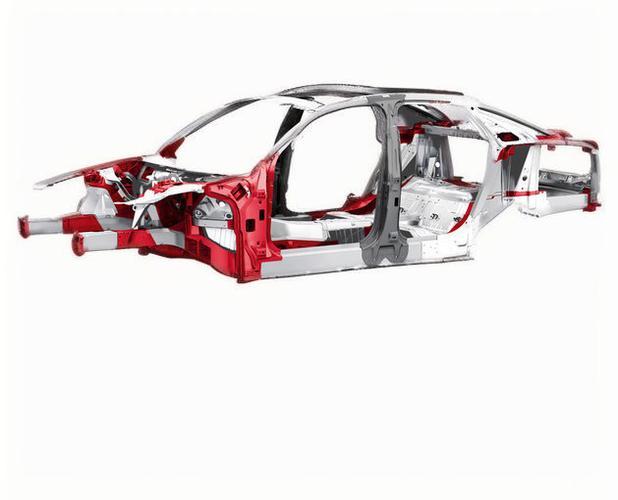

Wet pultrusion is extensively used in the automotive and construction industries. For instance, components in BMW and Mercedes-Benz vehicle frames utilize wet pultruded carbon fiber composites for enhanced strength and lightweight performance.

Advantages and Disadvantages:

• Advantages: High production efficiency, cost-effective, suitable for large-scale production.
• Disadvantages: Limited capability for producing complex shapes, and resin impregnation quality directly affects the product's performance.









3. Prepreg Molding Process

Prepreg molding involves using pre-impregnated carbon fiber materials where the fibers are already saturated with resin. This technique ensures uniform resin distribution and enables the production of components with consistent and precise properties.

Process Steps:

1. Prepreg layers are stacked in a mold to form the desired shape.
2. Heat and pressure are applied to cure the resin, solidifying the composite material.
3. The finished component is removed from the mold and subjected to post-processing if necessary.

Applications:
This process is widely adopted in the aerospace industry. For example, the wings and fuselage frames of the Boeing 787 are predominantly made from prepreg carbon fiber composites, ensuring high structural integrity and lightweight properties.

Advantages and Disadvantages:

• Advantages: Ensures uniform resin distribution, suitable for producing high-quality, high-precision components.
• Disadvantages: Requires refrigerated storage for prepreg materials, leading to higher logistics costs. Best suited for medium to small-scale production.









4. Vacuum Bagging Process

Vacuum bagging involves creating a vacuum environment to mold carbon fiber composites. This process effectively reduces voids and defects in the material, enhancing its overall performance.

Process Steps:

1. Carbon fiber fabric is laid up in the mold, stacked layer by layer, and secured.
2. A plastic film is applied over the mold, and a vacuum pump is used to extract air from the bag, creating a vacuum environment.
3. Resin is injected into the mold under vacuum pressure, allowing it to uniformly impregnate the fiber layers.
4. The component is cured under heat and pressure, then removed from the mold.

Applications:

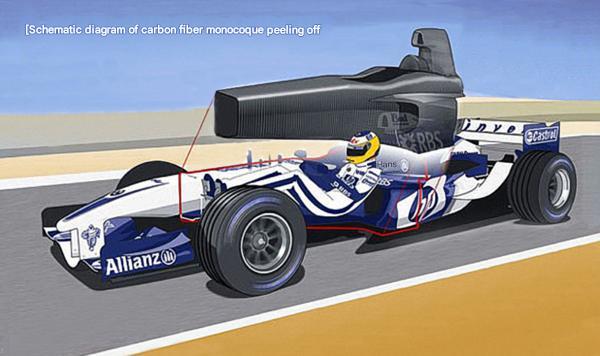

Vacuum bagging is widely used in motorsport and aerospace industries. For instance, F1 race car components are commonly manufactured using this process to ensure their structural strength and lightweight properties.

Advantages and Disadvantages:

• Advantages: Produces high-strength, high-density components; suitable for large parts such as car bodies and aircraft wings.
• Disadvantages: Longer production cycle, moderate production volume, and requires precise operation.









5. Resin Transfer Molding (RTM)

RTM is a process that uses high pressure to inject resin into pre-shaped dry carbon fiber materials. This method produces high-quality, precision components with excellent performance.

Process Steps:

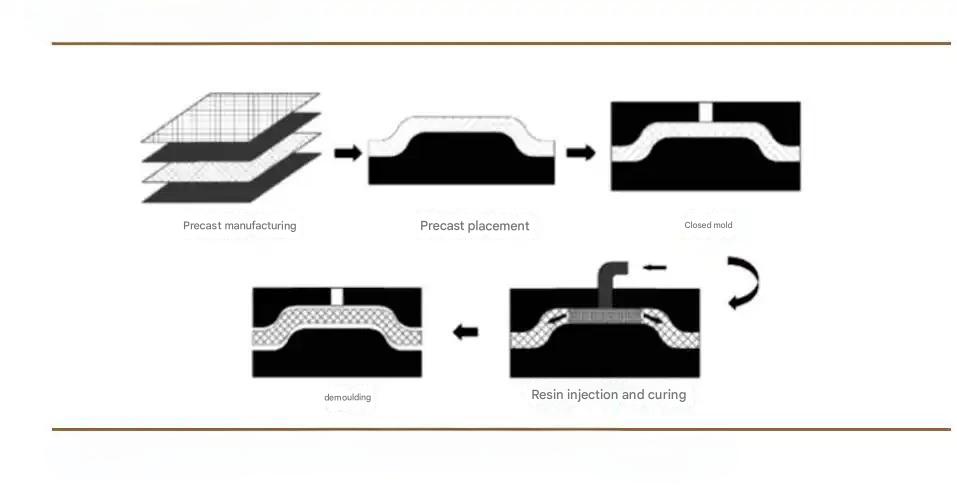

1. Dry carbon fiber fabrics or preforms are placed into a closed mold and compacted.
2. Resin is injected into the mold under high pressure, saturating the fiber layers.
3. The part is cured under heat and pressure to achieve the desired properties.

Applications:
RTM is commonly used in the automotive industry. For example, the carbon fiber doors of the Ford F-150 pickup truck, known for their excellent impact resistance and weight reduction, are manufactured using this process.

Advantages and Disadvantages:

• Advantages: Suitable for producing high-precision, high-strength components; allows for higher production efficiency.
• Disadvantages: Requires significant investment in molds and equipment, making it ideal for medium-scale production.









6. Hand Lay-Up Process

Hand lay-up is a traditional and widely used technique, particularly suitable for low-volume production or manufacturing complex-shaped components.

Process Steps:

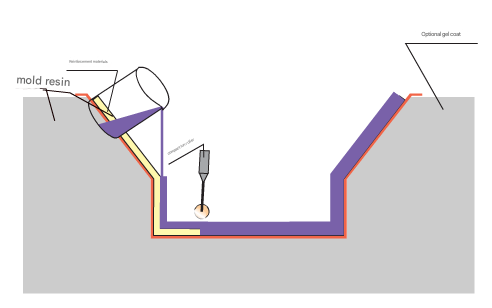

1. Resin is manually applied to the surface of the mold.
2. Carbon fiber fabric is layered in the mold, with each layer thoroughly impregnated with resin.
3. Excess resin is removed using a roller to ensure uniform impregnation.
4. The component is cured and removed from the mold.

Applications:
Hand lay-up is extensively applied in the aerospace and marine industries. For instance, cabin panels in private jets and hulls of small boats are often fabricated using hand lay-up carbon fiber composites.

Advantages and Disadvantages:

• Advantages: Ideal for manufacturing custom, complex shapes; low equipment cost.
• Disadvantages: Low production efficiency, less consistency, and requires skilled operators.









7. Conclusion

The manufacturing processes of carbon fiber composites are diverse, with each technique offering unique advantages and application scenarios. Selecting the appropriate method not only enhances product performance but also reduces production costs. As demand for carbon fiber composites grows in aerospace, automotive, and sports equipment industries, future advancements in manufacturing processes will prioritize efficiency, precision, and sustainability. By continuously optimizing production techniques, carbon fiber composites will further revolutionize high-performance product development and remain indispensable in modern engineering.
