Applications of Carbon Fiber Composites in Automobiles and Auto Parts
As the global automotive industry shifts towards lightweight design, energy efficiency, and performance optimization, carbon fiber-reinforced polymer (CFRP) is emerging as a key material due to its exceptional properties. With high strength, low density, and excellent corrosion resistance, CFRP not only improves vehicle performance but also supports the industry's move toward greener solutions.
Key Characteristics of Carbon Fiber Composites
CFRP is a composite material consisting of carbon fibers embedded in a resin matrix. Compared to traditional metals like steel and aluminum, CFRP offers superior strength and stiffness while having only about a quarter of the density of steel. This high specific strength and stiffness make CFRP an ideal choice for automotive lightweighting. Additionally, its outstanding fatigue resistance and corrosion resistance significantly extend the lifespan of vehicle components.
Applications in Vehicle Design

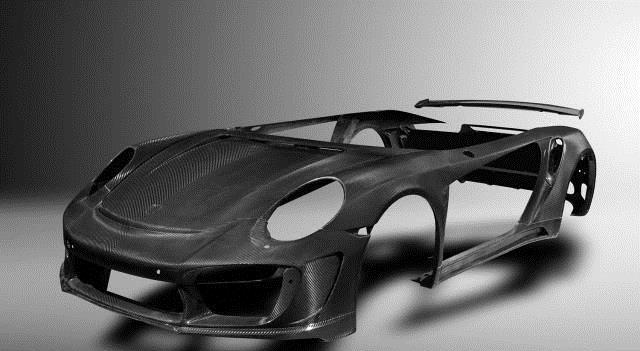

1. Lightweight Vehicle Structures

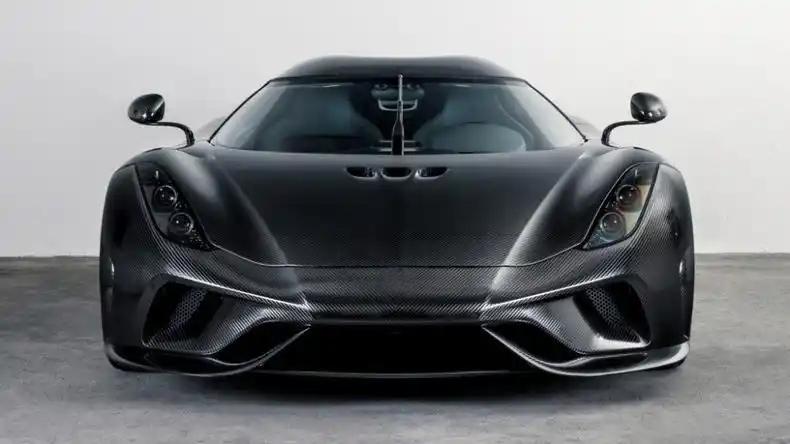

In high-performance and supercars, CFRP has become a critical material for structural components. For example, brands such as McLaren, Ferrari, and Lamborghini widely use carbon fiber monocoque chassis. These structures, made primarily of CFRP, not only reduce vehicle weight but also greatly enhance structural strength and crash safety.
Compared to traditional steel or aluminum chassis, a carbon fiber monocoque can achieve a 30%-50% weight reduction. It also lowers the vehicle’s center of gravity, improving handling and dynamic performance. For instance, the McLaren P1 supercar’s carbon fiber monocoque weighs just about 75 kg, significantly enhancing its acceleration and handling limits.
|
|
 |
2. Lightweighting in Electric Vehicles
CFRP is also widely used in electric vehicles (EVs), where lightweighting directly enhances range by reducing energy consumption. For example, the BMW i3 electric car features a passenger cabin entirely made of CFRP, reducing its curb weight by over 200 kg compared to a steel-bodied equivalent. This not only improves energy efficiency but also enhances dynamic performance.
 |
 |
Applications in Auto Parts
1. Carbon Fiber Wheels

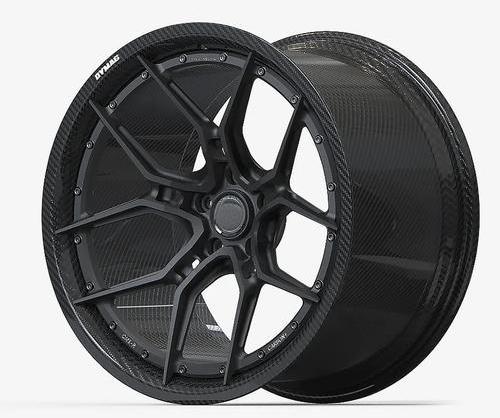

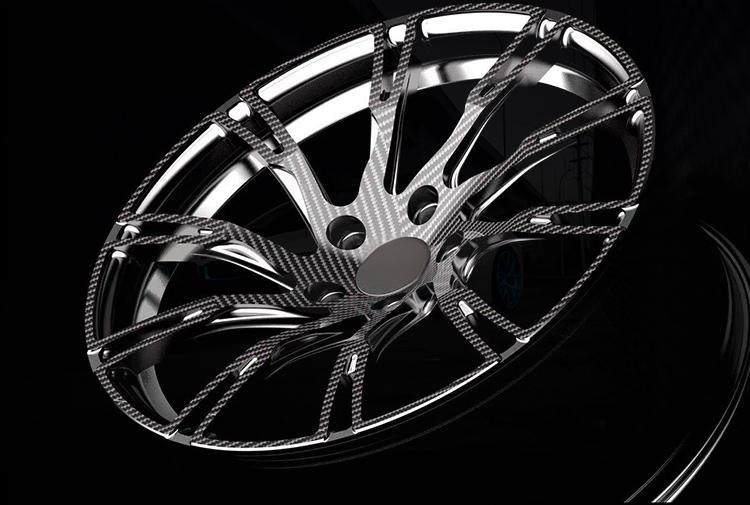

Carbon fiber wheels are high-end lightweight components that are increasingly popular in the performance car market. Compared to traditional aluminum alloy wheels, carbon fiber wheels are lighter, stiffer, and better at absorbing vibrations, improving both ride comfort and handling stability. For example, the carbon fiber wheels on the Porsche 911 Turbo S reduce weight by nearly 50%, significantly lowering unsprung mass and enhancing vehicle responsiveness.
 |
 |
2. Carbon Fiber Driveshafts

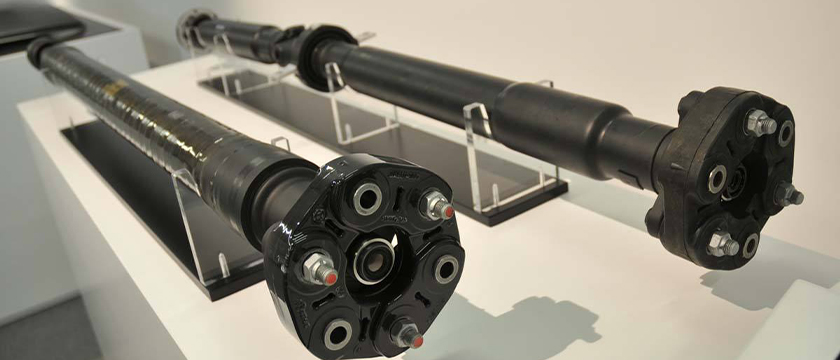

CFRP’s high specific strength and fatigue resistance make it ideal for manufacturing driveshafts. Compared to traditional steel driveshafts, carbon fiber driveshafts are not only lighter but also capable of achieving higher critical rotational speeds, reducing resonance and improving transmission efficiency. For instance, the Nissan GT-R NISMO features a carbon fiber driveshaft that optimizes power delivery and increases durability.
3. Aerodynamic Components

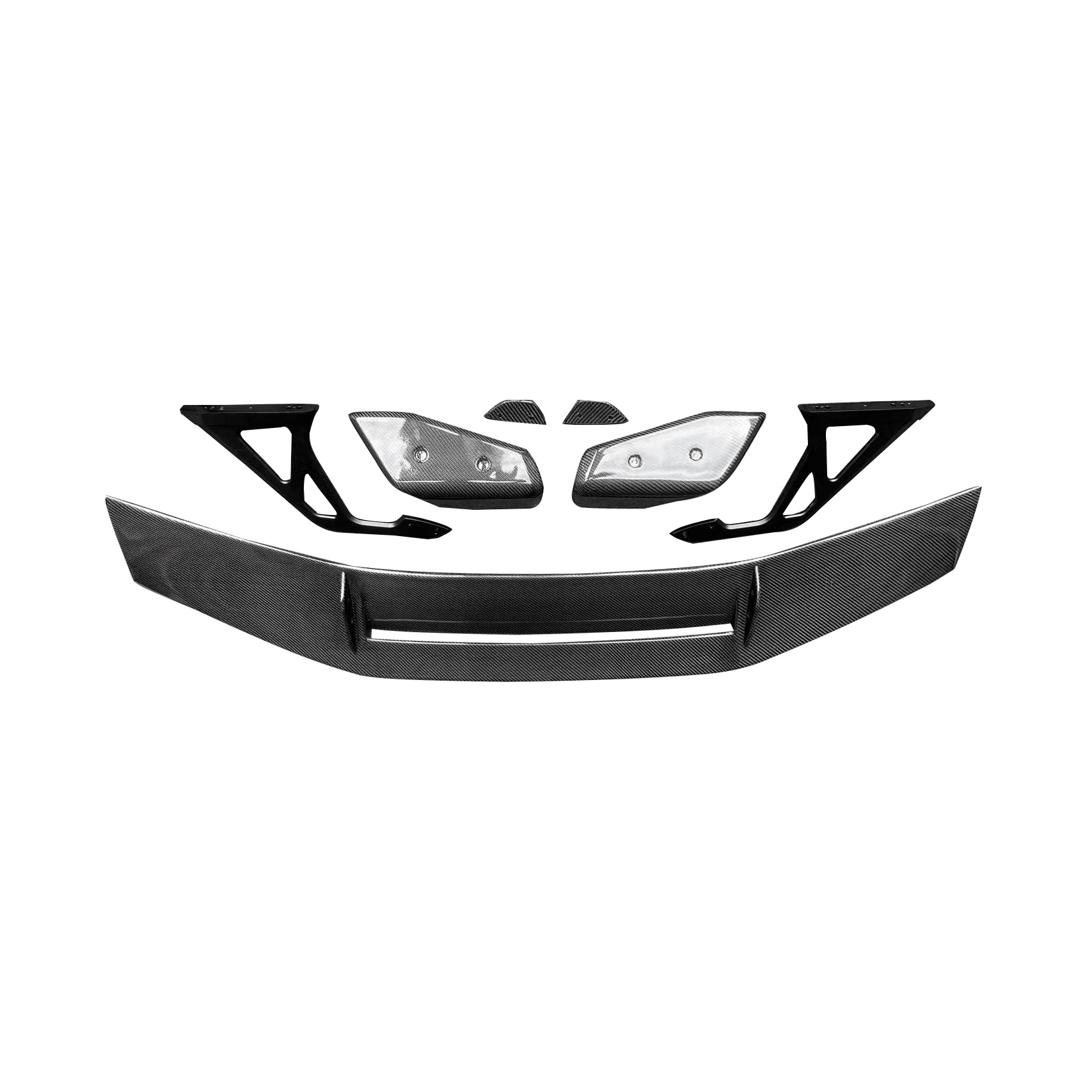

CFRP excels in making aerodynamic components such as front splitters, rear diffusers, side skirts, and spoilers. These parts require lightweight and high-strength materials to meet the extreme demands of high-performance vehicles. For example, the carbon fiber rear wing on the McLaren 720S enhances downforce and stability while significantly reducing weight.
 |
 |
Advantages of Carbon Fiber Composites
Compared to traditional materials like steel and aluminum, CFRP offers several distinct advantages:
-
Exceptional Lightweighting
With a density about one-fourth that of steel but much higher strength, CFRP provides unmatched lightweighting benefits, contributing directly to energy savings and performance improvements. -
High Strength and Stiffness
Carbon fiber’s tensile strength can reach thousands of megapascals, far exceeding most metals, making it ideal for critical structural components where safety is paramount. -
Corrosion Resistance and Longevity
CFRP is highly resistant to environmental corrosion and chemical degradation, ensuring greater reliability and a longer lifespan. -
High Design Flexibility
CFRP can be molded into complex geometries through compression molding, giving automotive designers greater creative freedom.
Future Trends in CFRP for Automobiles
Despite the significant progress made in applying CFRP in the automotive sector, its widespread adoption still faces the challenge of high costs. However, with advances in production technology and increased manufacturing scale, costs are gradually decreasing. In the future, the following trends will further drive CFRP’s adoption in the automotive industry:
-
Breakthroughs in Mass Production
Advancements in automated manufacturing processes will significantly reduce CFRP production costs, paving the way for adoption in mid-range and entry-level vehicles. -
Multi-Material Hybrid Structures
Combining CFRP with other lightweight materials such as aluminum and high-strength steel will become a mainstream design trend, balancing performance and cost. -
Intelligent Manufacturing
Integrating artificial intelligence and digital twin technologies into production will further optimize efficiency and quality control for CFRP components.
Conclusion
With its superior properties, CFRP is demonstrating tremendous potential in the automotive and auto parts industries. From lightweight vehicle structures to high-performance components, CFRP is reshaping traditional manufacturing processes while driving the automotive industry toward a greener, more efficient, and intelligent future. As technological advancements continue, we can expect CFRP to play an even larger role in shaping the new landscape of the automotive sector.
